HEAT
1D whole-lithosphere thermal modelling



Overview:

Heat is a 1D forward-modelling program for predicting heat-flow history, geothermal history, maturation history and horizon-temperature history at well or pseudo-well locations.


Heat allows the user to input a 1D stratigraphic section and very quickly model the thermal history.


The following geological constraints are incorporated in Heat's calculations:

  • Tectonic history, the thermal consequences of multiple rifts.
  • Whole-lithosphere thermal perturbation through time, a consequence of the tectonic history.
  • Crust & lithosphere thinning, can be considered as uniform with depth or depth-dependent.
  • Burial history, defined by input stratigraphy and lithology, with compaction incorporated
  • Lithologically-controlled thermal conductivities within the sediment fill
  • Radiogenic heat input from both the crustal basement and the sediment fill
  • The thermal consequences of igneous intrusion into the basement or sediment fill

  • Heat produces depth-scaled temperature profiles together with predictions of source rock maturation (vitrinite reflectance), both of which can be calibrated against present-day downhole measurements of temperature and maturation index (%VR).


    Click here for the brochure




    Key Features:


    1D whole-lithosphere thermal model

    Incorporating thermal contributions from the mantle, crust, sediment infill (including lithologically-controlled conductivities) & tectonic history to give a complete thermal model


    Quantify heat-flow history

    Heat-flow history for both the top-basement and top-sediment interfaces is predicted, spanning the full time history of the input stratigraphy.


    Vitrinite reflectance & temperature calibration

    Predicted values of vitrinite reflectance and temperature can be calibrated against downhole measurements.

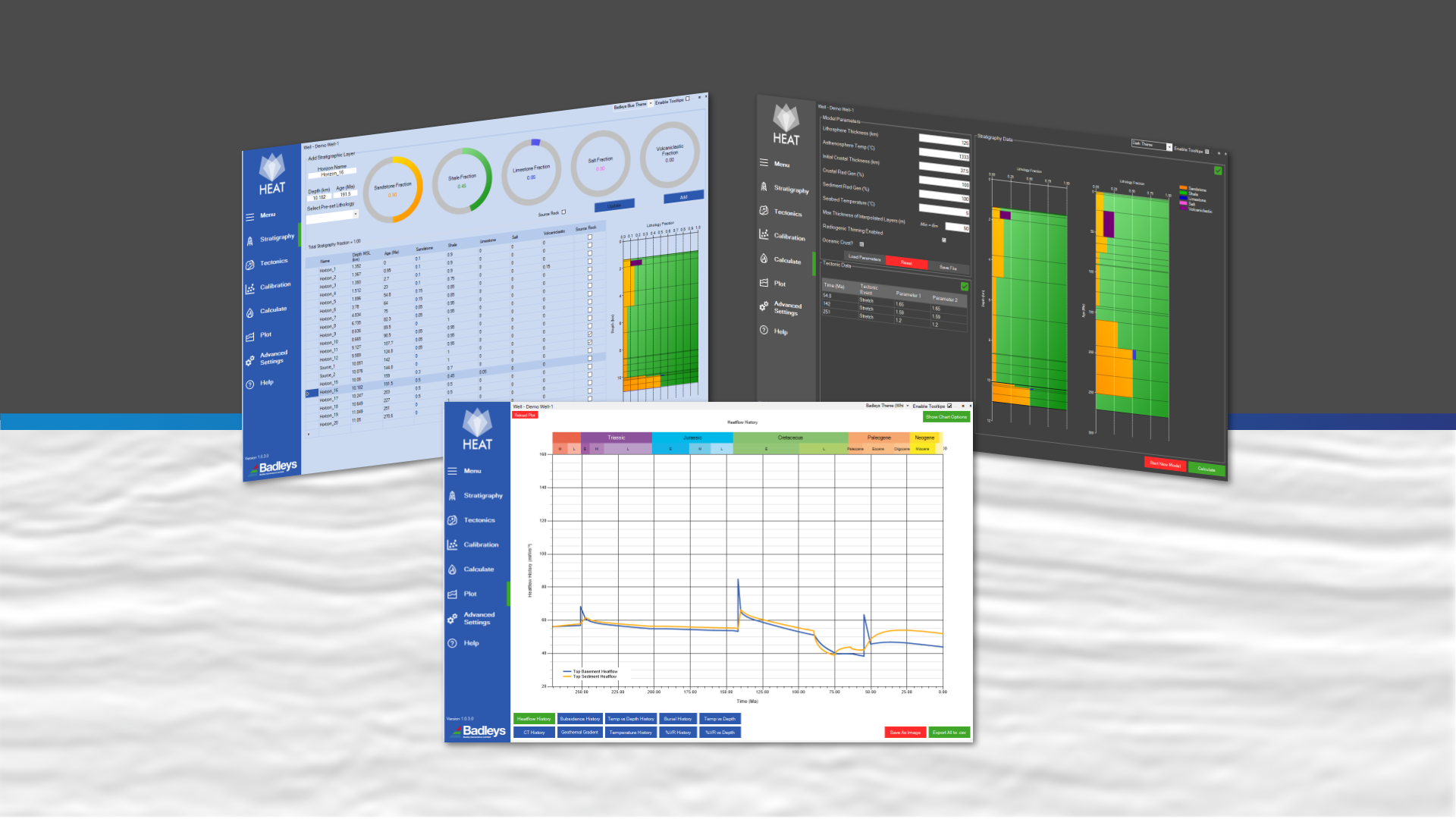

    Maturation index (%VR) and temperature can be overlaid as a backdrop to the complete burial history of the stratigraphic sequence (see image above).


    Fast & efficent

    Input of stratigraphy is intuitive, simple and easily integrated with parameters controlling tectonic and geological history. The calculation engine is optimised so that models run in seconds, making iteration rapid and straightforward.


    Easy to use

    Designed to be used by all geoscientists who wish to investigate the thermal consequences of the processes which generate extensional basins and continental margins.


    Outputs:

  • Top-basement and top-sediment heat-flow history
  • Top-basement tectonic-subsidence history
  • Basement crustal-thickness history
  • Whole-lithosphere-temperature vs depth history (geotherm profiles)
  • Horizon burial history, with overlay of maturation index and temperature
  • Horizon temperature history
  • Horizon vitrinite reflectance (%VR) history
  • Geothermal gradient within sediment fill
  • Present-day temperature-vs-depth profile, with temperature calibration
  • Present-day vitrinite-reflectance-vs-depth profile, with %VR calibration
